Custom Silicone Nameplates for Power Tools

Heat-resistant silicone body markings moulded for drills, grinders and saws, from 100 pieces.

Made in our own plant — mould shop, PVC injection and silicone compression moulding under one roof in Guangdong, China

Silicone nameplates moulded for power tool housings, shown fitted on tool bodies

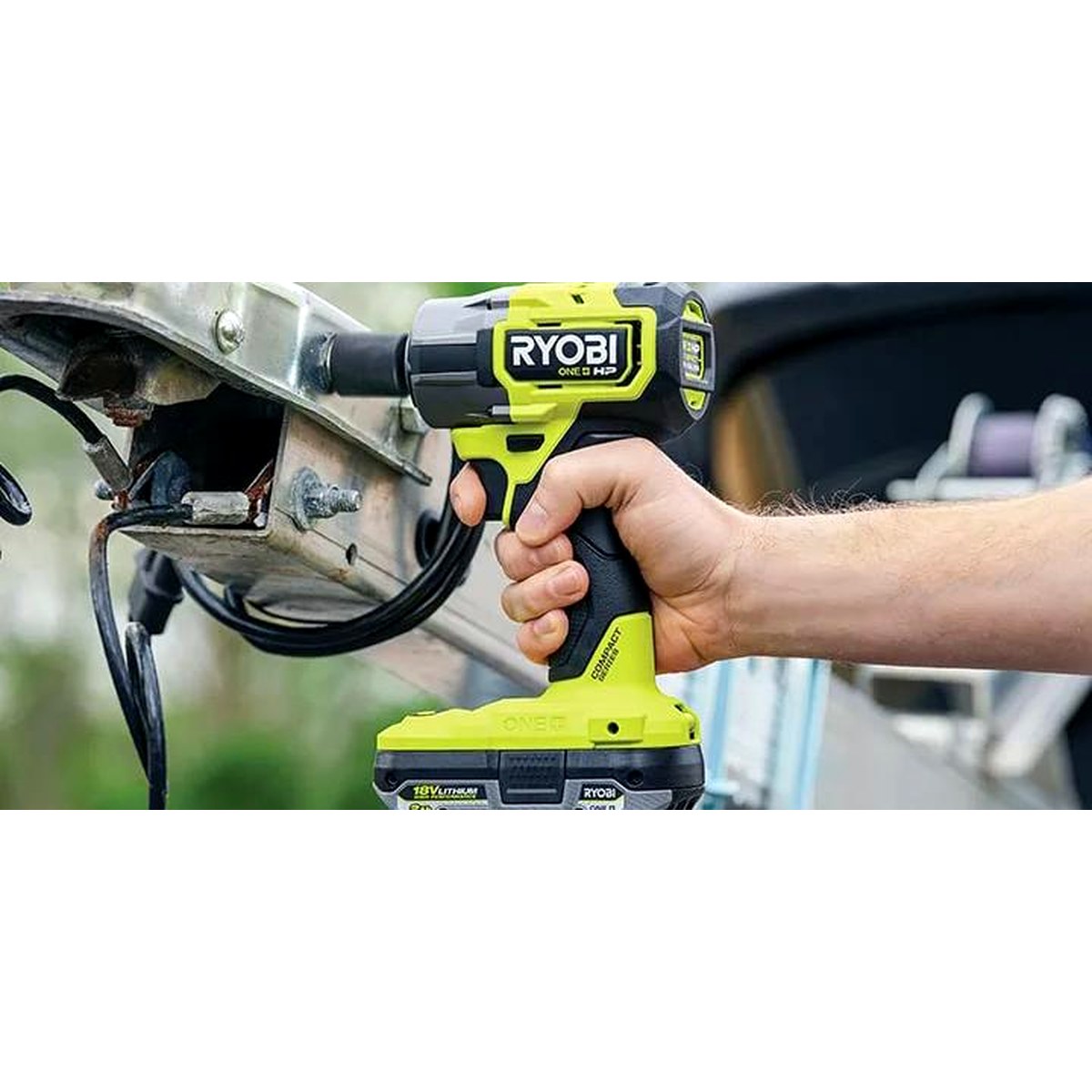

Moulded silicone body marking applied along the housing of a power tool

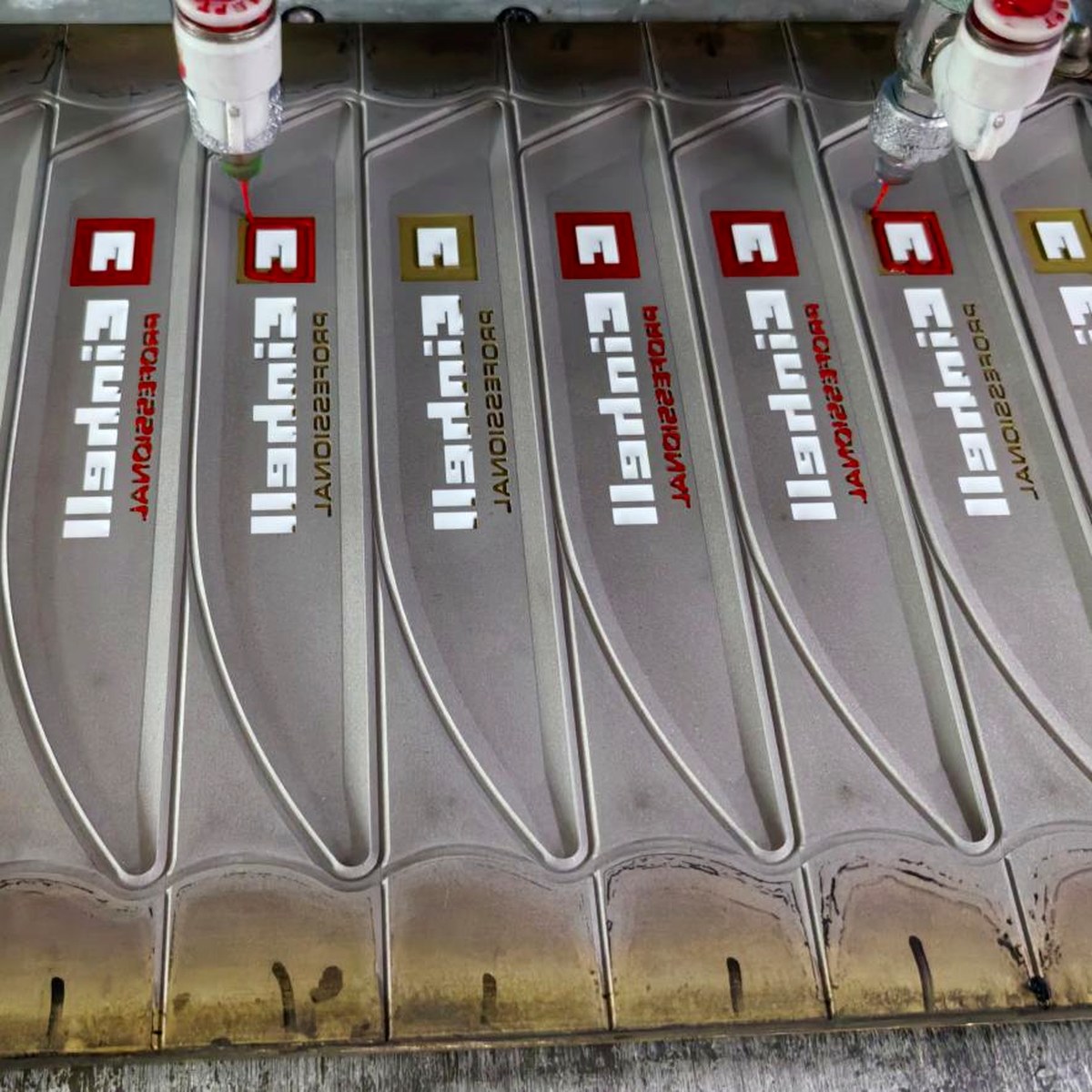

Close view of a moulded silicone brand badge with raised 3D lettering
Detail of a finished silicone nameplate showing edge definition and surface finish

Lingvent Design moulds silicone nameplates and body markings for power tool housings, including programmes supplied for Einhell. A nameplate on a tool body has to survive heat, vibration, oil and sunlight while keeping the brand mark crisp, so we tool it from solid silicone rather than printing a sticker: the logo, technical data and safety symbols are compression-moulded as one piece, then backed with a high-strength adhesive selected for the housing material. Plates can follow curves and arcs, carry microtext and fine 3D relief, and are finished in mirror, matte or embossed surfaces.

Specifications

Material100% food-grade platinum-cured silicone, FDA 21 CFR 177.2600 compliant
Size range0.8–3.0 mm thick, up to 300 × 120 mm
ColourSolid, gradient or dual-colour, Pantone matched; fluorescent and reflective grades available
Surface finishMirror polish, matte or embossed; 3D relief and microtext down to ±0.01 mm mould accuracy
Minimum order100 pcs per design
Lead time12–30 days after artwork approval
PackingPolybag, backing card or retail carton
Request a Quote Capabilities

Customisation options

  • 3D relief logos with gradient colour fills
  • Microtext and fine safety or certification symbols
  • Curved and arc-shaped plates that follow the housing
  • Ultra-thin or thick profiles to sit flush or stand proud
  • Fluorescent or reflective coatings for low-light identification
  • Adhesive matched to ABS, nylon, metal or painted surfaces

Typical applications

  • Electric drills, angle grinders and chainsaws
  • Welders and cutting tools running at high temperature
  • Garden and outdoor power equipment
  • OEM tool branding and rating plates
  • Service-part and aftermarket identification
  • Industrial equipment housings and control panels

Engineering

Engineering you can see

Before a single mould is cut, every project is modelled and dimensioned. These drawings are real examples of our design output — front, back, side and open views with colour call-outs and tolerances.

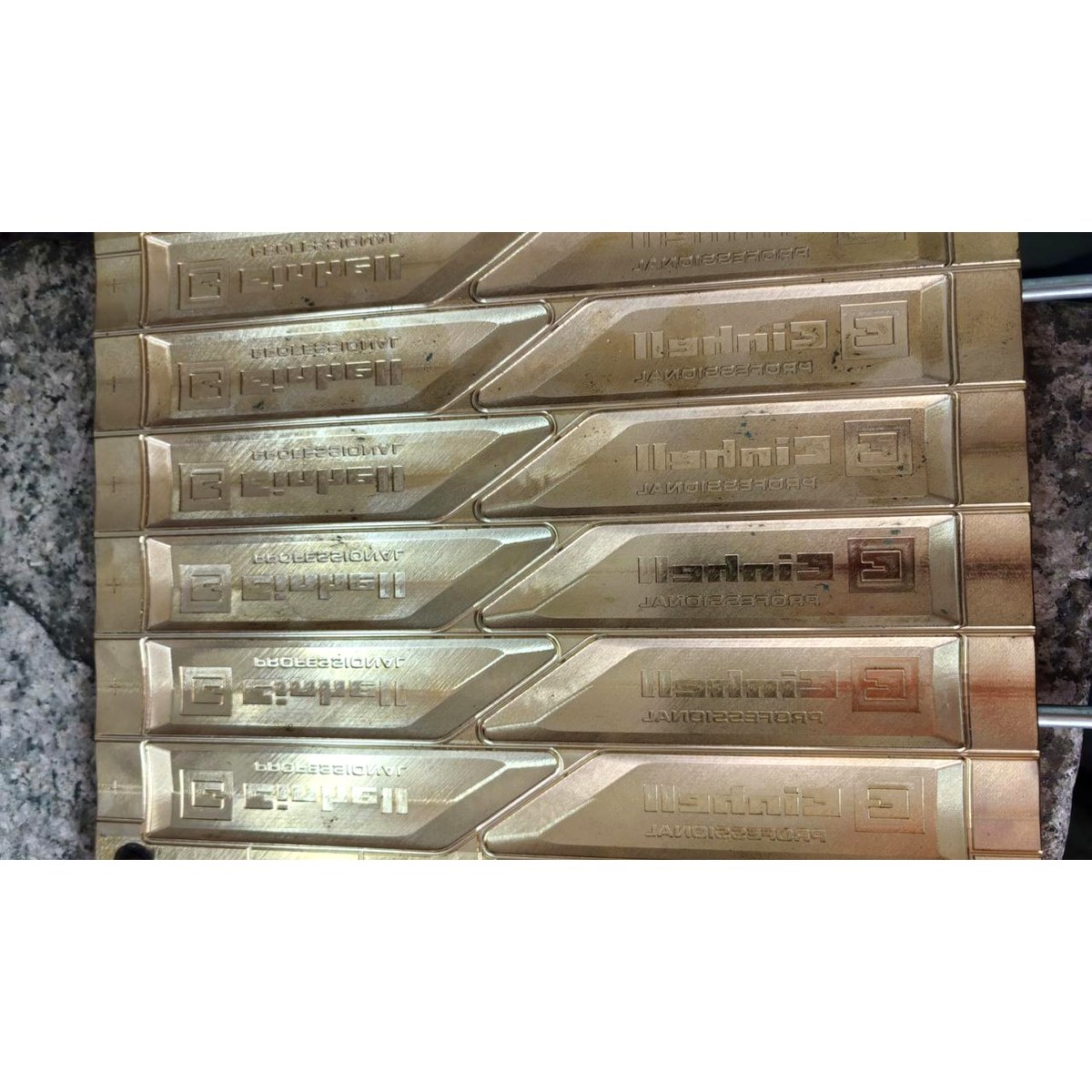

CNC-engraved steel mould for silicone nameplates, inspected after sandblasting

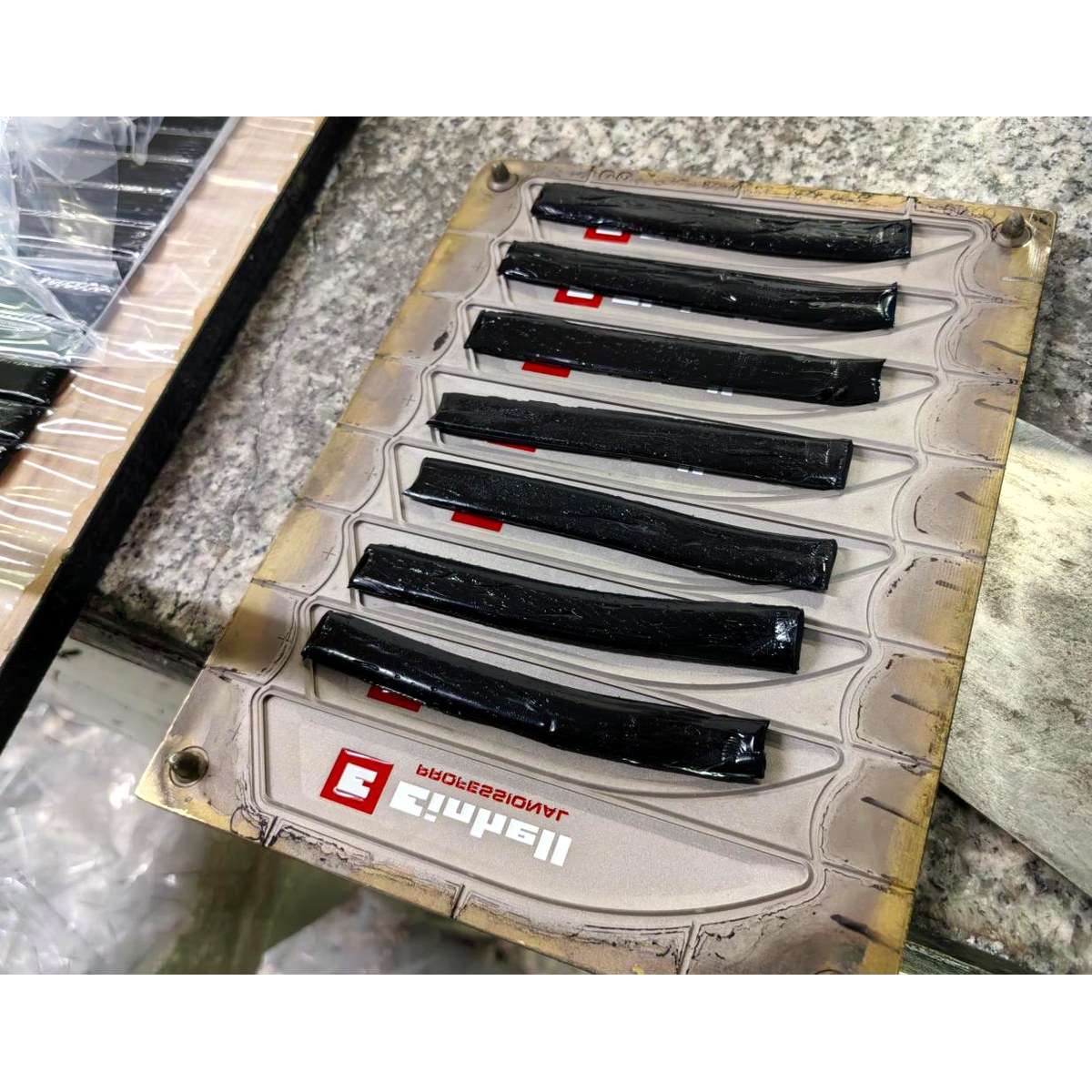

Compression moulding of silicone nameplates under heat and pressure

Frequently asked questions

How much heat can a silicone tool nameplate take?

Our standard platinum-cured silicone compound holds from −40 °C to 230 °C in continuous use without deforming or cracking, which covers drill, grinder and saw housings as well as hotter welder and cutter bodies. If your tool runs hotter than that, tell us the working temperature and we will quote a compound to match.

Will the nameplate lift or fall off under vibration?

No. The flexible silicone absorbs impact instead of transmitting it, and the backing is a high-strength adhesive chosen for the housing material. Plates are tested on running tools for edge lifting and detachment before a production order is released.

Can you reproduce our logo in 3D with exact brand colours?

Yes. Moulds are cut on CNC machining centres with ±0.01 mm positioning accuracy, so 3D reliefs, gradient colour fills and microtext stay sharp with no blurring or glue overflow. Colours are matched to your Pantone references.

Can the plate follow a curved tool housing?

Yes. We tool the plate to the housing rather than forcing a flat sticker onto it, so curved and arc surfaces, and irregular shapes, can be matched. Send the housing drawing or a sample and we will model the fit.

What is the minimum order and lead time for custom nameplates?

100 pieces per design. Sampling takes 5–7 days and mass production 12–30 days depending on quantity and finish. Tooling is a one-off charge, the mould is dedicated to your design and repeat orders are not re-charged.

Related capabilities

Start your project

Send us your artwork, shape reference or just an idea. We will come back with a 3D model, a price and a delivery date.
